In the world of IoT, energy efficiency is a critical factor, especially when devices need to operate on limited power sources like batteries for extended periods. This guide will walk you through practical tips and examples to design low-power IoT devices that maximize battery life without compromising performance.
Disclaimer:
Handling electricity carries inherent risks. It’s essential to have the appropriate skills to manage it safely. Proceed at your own risk, as the author disclaims responsibility for any misuse, harm, or errors. All content on this website is unique and copyrighted; please avoid unauthorized copying. While most articles are open-source for your benefit, feel free to use the knowledge provided. If you find our resources helpful, consider purchasing available materials to support our work.
For assistance or guidance, leave a comment below; the author is committed to helping. Some articles may contain affiliate links that support the author with a commission at no additional cost to you. Thank you for your understanding and support.
Table of Contents
Understanding Power Consumption
To design energy-efficient IoT devices, it’s essential to understand the factors that contribute to power consumption:
- Microcontroller Selection: Choose microcontrollers (MCUs) known for low power consumption. For instance, ARM Cortex-M0/M4-based MCUs are popular in low-power applications due to their efficient energy use.
- Sensor Management: Sensors can be significant power consumers. Utilize sensors with low-power modes or those that can be put to sleep when not in use.
- Communication Protocols: Wireless communication modules often consume the most power. Opt for low-power communication protocols like LoRa, Zigbee, or BLE, designed for energy efficiency.
- Duty Cycling: Implement duty cycling to minimize power use. Devices should remain in a low-power sleep mode most of the time, only waking up periodically to perform tasks.
Practical Examples of Low-Power IoT Design
1. Smart Temperature Monitoring System
Components:
- MCU: ESP32 (configured for deep sleep mode)
- Sensor: DHT22 (humidity and temperature sensor)
- Communication: LoRa module
Power Optimization Tips:

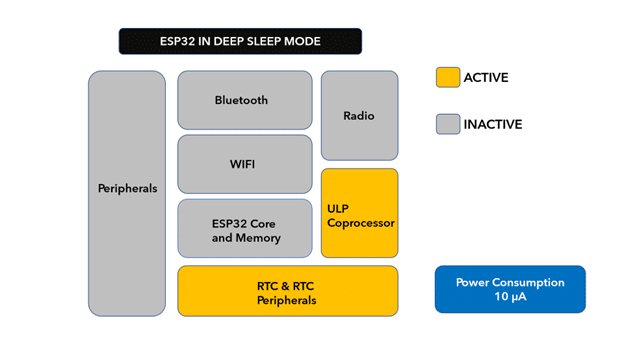

- Configure the ESP32 to enter deep sleep mode between measurements.
- Use the DHT22 sensor in a pulsed mode where it only activates during readings.
- Transmit data using LoRa at predefined intervals, reducing the frequency to conserve power.
Explanation: By using deep sleep mode and reducing the frequency of data transmission, you can significantly lower the power consumption of the system, allowing it to run for years on a single battery.

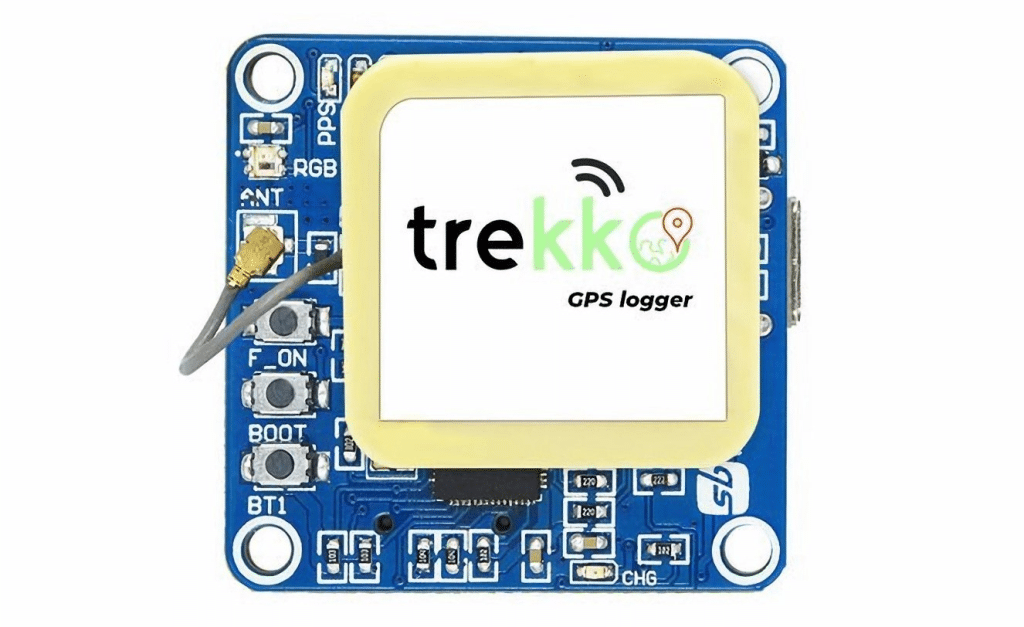

2. Battery-Powered GPS Tracker
Components:
- MCU: STM32L4 series (ultra-low power)
- GPS Module: u-blox MAX-M8
- Communication: GSM/GPRS module
Power Optimization Tips:
- Utilize the STM32L4‘s low-power modes, such as Stop and Standby.
- Configure the GPS module to operate in a power-saving mode, only when movement is detected.
- Use the GSM module sparingly, limiting transmissions to when the device has moved significantly.
Explanation: The STM32L4’s low-power capabilities and a GPS module that operates in a power-saving mode ensure that the device consumes minimal power, extending battery life.
Additional Tips for Maximizing Battery Life
- Use Energy-Efficient Components: Always choose components designed for low power consumption, even if they cost a bit more.
- Optimize Firmware: Write firmware that efficiently manages power states and minimizes processor activity.

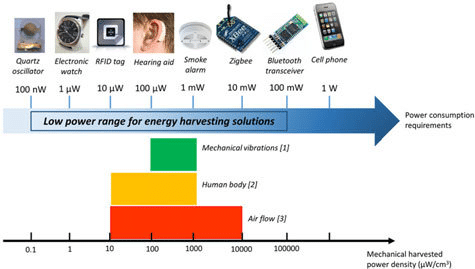

- Energy Harvesting: Consider integrating energy-harvesting techniques (e.g., solar panels) to supplement the battery.
- Battery Selection: Choose the right type of battery for your application. Lithium-ion and lithium-polymer batteries are commonly used due to their high energy density.
- Minimize Unnecessary Tasks: Reduce the number of non-essential tasks that the device performs to conserve energy.
Conclusion
Designing low-power IoT projects requires careful consideration of component selection, power management techniques, and efficient coding practices. By following these tips and leveraging the examples provided, you can create IoT devices that are functional and energy-efficient, maximizing battery life for long-term operation.
