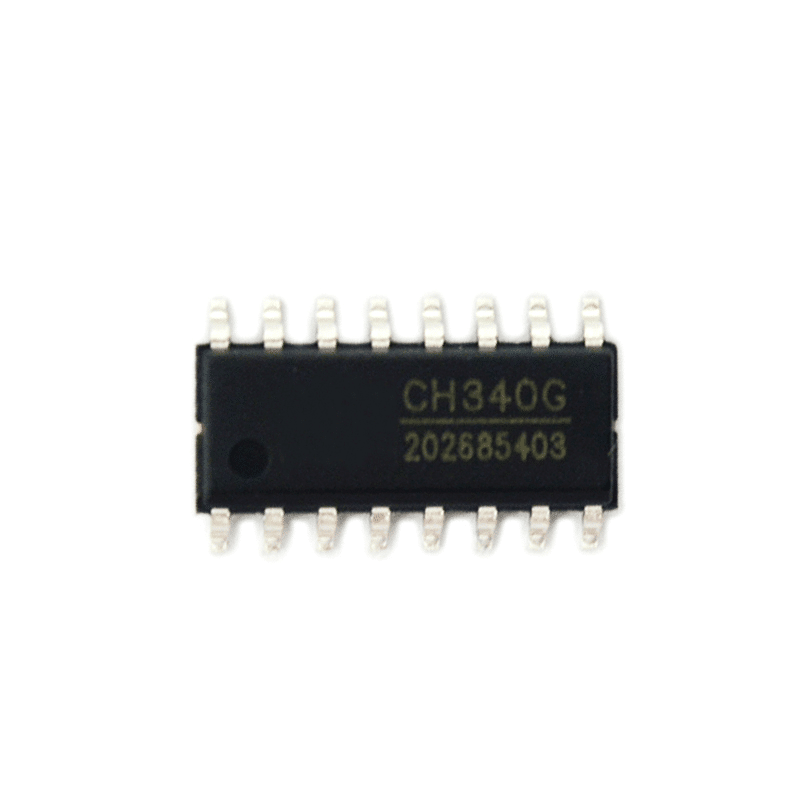

CH340 is a very common USB-to-serial interface IC for different purposes. With Arduino, ESP, or even adding a USB-serial port with any microcontroller this IC is a kind of legend now. So, let’s check it out!

Disclaimer: Electricity is always dangerous. Proper skill is required to work with electricity. Do work at your own risk. The author will not be responsible for any misuse or harmful act or any mistake you make. The contents of this website are unique and copyright-protected. Kindly don’t do any nonsensical act of copying and claiming it as yours. Most of the articles published here are kept open-source to help you. Take the knowledge for free and use it, but if you are interested you can buy the ready resources offered here. If you need any help or guidance feel free to comment below, the author will try to help you. Also, there can be affiliation links in the article. Which will not affect you anyway, but allows the author with some commission. So please don’t take it otherwise. Thanks.

Table of Contents


What is CH340:

CH340 is a USB bus conversion chip, it can realize USB to UART interface or USB to printer interface. In serial UART mode, CH340 provides a common MODEM liaison signal, used to expand the UART interface of the computer or upgrade the common serial device to a USB bus directly.

Download: CH340 Datasheet

Download: CH340 Driver for Windows

Download: CH340 Driver for Mac

Download: CH340 Driver for Linux

CH340 with Arduino:

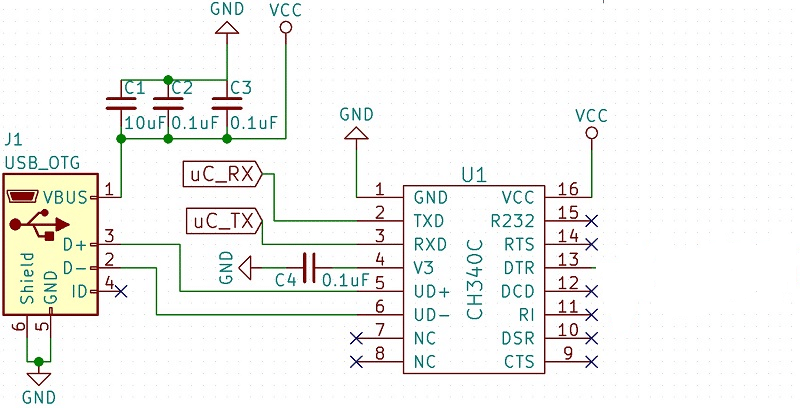

For using with Arduino, you may find different circuits. But I’ve experienced faults with most of them. But there is one circuit, that you can follow blindfolded.

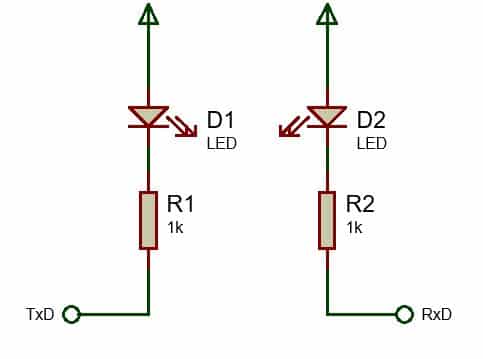

Many designs suggest using a resistor in series with the TxD and RxD pins between CH340 and Arduino. But those are really problematic. And I’ve faced many problems with those. But this circuit has no faults. Additionally, if you need to use LEDs, simply use them in the following configuration:

Notes: When you are using with Arduino, make sure the VCC of CH340 & Arduino is the same, and in most cases it’s 5V.

CH340 with ESP32:

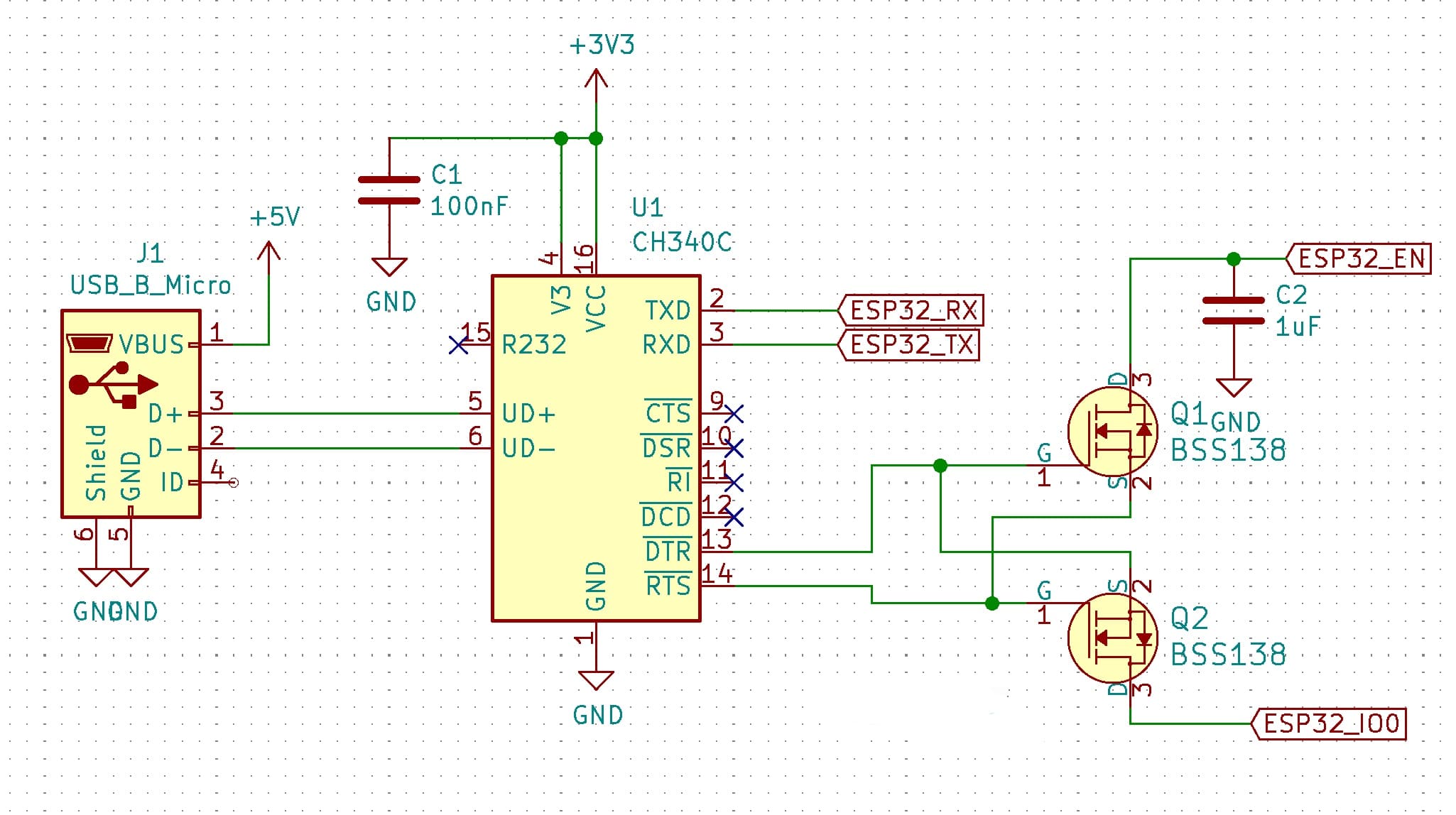

When using with ESP32, it is little different because of ESP’s EN pin characteristics. In this case, the tested circuit is this:

Here Q1 & Q2 can be transistors, but with transistors, I experienced failure in some cases. But using MOSFETs, it never failed. But, one very important thing to keep in mind. When you are using CH340 with ESP32, make sure that the VCC is 3.3V.

For USB to Serial conversion:

Simple, use this diagram without any tension.

You can read my other articles too:

If you still have problems installing the driver in Windows / Mac / Linux, follow this link.


This article was written from my bad experience with CH340 and following useless circuits from online. Those killed my time and lots of production loss. So, here you get all tested and working diagrams which will save your time and money. See you soon, thanks.
