I2C and SPI communication: Learning PIC microcontrollers[Chapter 13]

Explore the fundamentals of I2C and SPI communication protocols, essential for interfacing sensors, modules, and displays, and facilitating MCU-to-MCU communication. Master these crucial skills for seamless integration and efficient data transfer in embedded systems and electronics projects, so let’s start!

Disclaimer:

Handling electricity carries inherent risks. It’s essential to have the appropriate skills to manage it safely. Proceed at your own risk, as the author disclaims responsibility for any misuse, harm, or errors. All content on this website is unique and copyrighted; please avoid unauthorized copying. While most articles are open-source for your benefit, feel free to use the knowledge provided. If you find our resources helpful, consider purchasing available materials to support our work.

For assistance or guidance, leave a comment below; the author is committed to helping. Some articles may contain affiliate links that support the author with a commission at no additional cost to you. Thank you for your understanding and support.

If you missed the previous chapter, you can read it here:

Understanding SPI Communication in PIC Microcontrollers:

Serial Peripheral Interface (SPI) is a synchronous serial data protocol used by microcontrollers for communicating with one or more peripheral devices quickly over short distances. It can also be utilized for communication between two microcontrollers. With its high data transmission speed, SPI is particularly useful in systems where rapid data streaming is vital, such as in memory card readers, digital audio interfaces, and digital signal processing.

How SPI Works in PIC Microcontrollers:

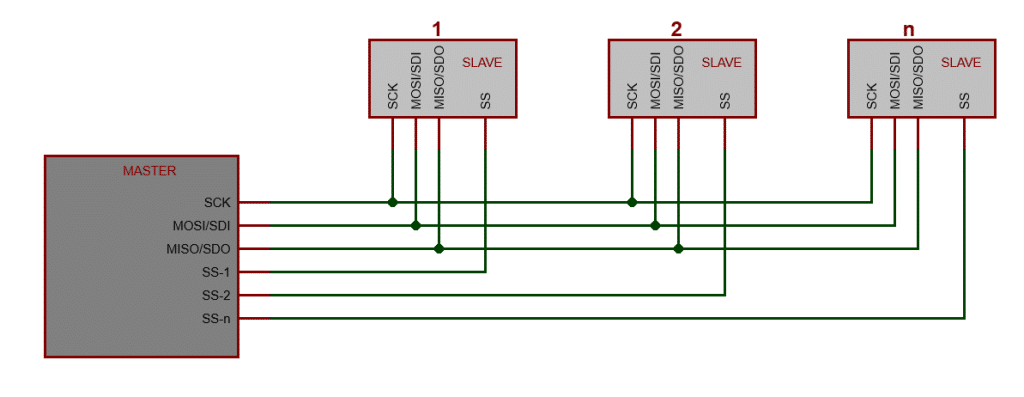

SPI communication is based on a master-slave architecture, where the master device controls the data flow using clock signals, and the slave devices follow the master’s clock to transmit or receive data. The primary components of an SPI connection include the master device, one or more slave devices, and four lines for communication:

• MISO (Master In Slave Out): Carries data from the slave back to the master.
• MOSI (Master Out Slave In): Sends data from the master to the slave.
• SCK (Serial Clock): The clock pulses supplied by the master device to synchronize data transmission.
• SS (Slave Select): A pin on each slave device that the master can set to low to select a particular slave device.

In the context of PIC microcontrollers incorporating SPI functionality, the implementation can typically be broken down into several key steps:

Configuration:

Firstly, the SPI module within the PIC microcontroller needs to be configured. This entails setting the clock rate, data order (MSB or LSB first), and mode (of which there are 4, varying by clock polarity and phase).

Data Transmission:

When data transmission begins, the master selects the slave device by pulling its SS line low. Afterward, the master sends a clock pulse through the SCK line, and data begins to be conveyed on the MOSI and MISO lines simultaneously.

Data Reception:

As data is clocked out from the master, it is clocked into the slave on the rising or falling edges of the clock signal, depending on the configured SPI mode. Conversely, as data from the slave is received by the master, it is read on the opposite clock edge from that used for writing.

Advantages of SPI Communication:

• Speed: SPI supports higher throughput than I2C or UART due to its full-duplex communication capability.
• Simplicity: Fewer pins and wires make PCB layout and design simpler with fewer routing complexities.
• Separate Device Selection: The individual SS lines allow the master to communicate with multiple slaves by selecting one at a time.

Considerations When Using SPI on PIC Microcontrollers:

• Distance: SPI is generally used for short distances since the clock signal can degrade over long distances.
• Resource Requirements: Each slave device requires a dedicated SS pin on the master, which can be a limitation if many slaves are needed.
• Collision and Contention: They are not issues in SPI since the master controls all communication timing, but proper management of SS lines is crucial to avoid conflicts.

In conclusion, SPI communication is a reliable and efficient way to transfer data in a system with a PIC microcontroller at its heart. Its simplicity and speed make it an excellent choice for a wide array of applications. However, considering the application’s specific requirements and limitations is essential in selecting the most suitable communication protocol.

Practical example:

Let’s make a practical thing to understand SPI more clearly.

mikroC Example Code:

/*
  Project name "Understanding SPI communication"
  Program written by Mithun K. Das; +8801972448270(WhatsApp)
  MCU:PIC16F76; X-Tal: 8MHz; mikroC pro for PIC v7.6.0
  Date:23-02-24
*/

// SPI module connections
sbit SS1 at RC0_bit;
sbit SS2 at RB0_bit;
sbit SS1_Direction at TRISC0_bit;
sbit SS2_Direction at TRISB0_bit;

int value1= 0x01;//dummy value
char info = 0xAA;// another dummy value

void main()
{
  SS1 = 1;
  SS2 = 1;
  SS1_Direction = 0;
  SS2_Direction = 0;
  SPI1_Init();
  while(1)
  {

     SS1 = 0;             //select slave1
     SPI1_Write(value1);   //send value
     SS1 = 1;             //deselect slave1

     Delay_ms(2000);

     SS2 = 0;             //select slave2
     SPI1_Write(info);   //send value
     SS2 = 1;             //deselect slave 2



     if(value1<100)value1++;
     else value1 = 0; //just a value increment

  }
}

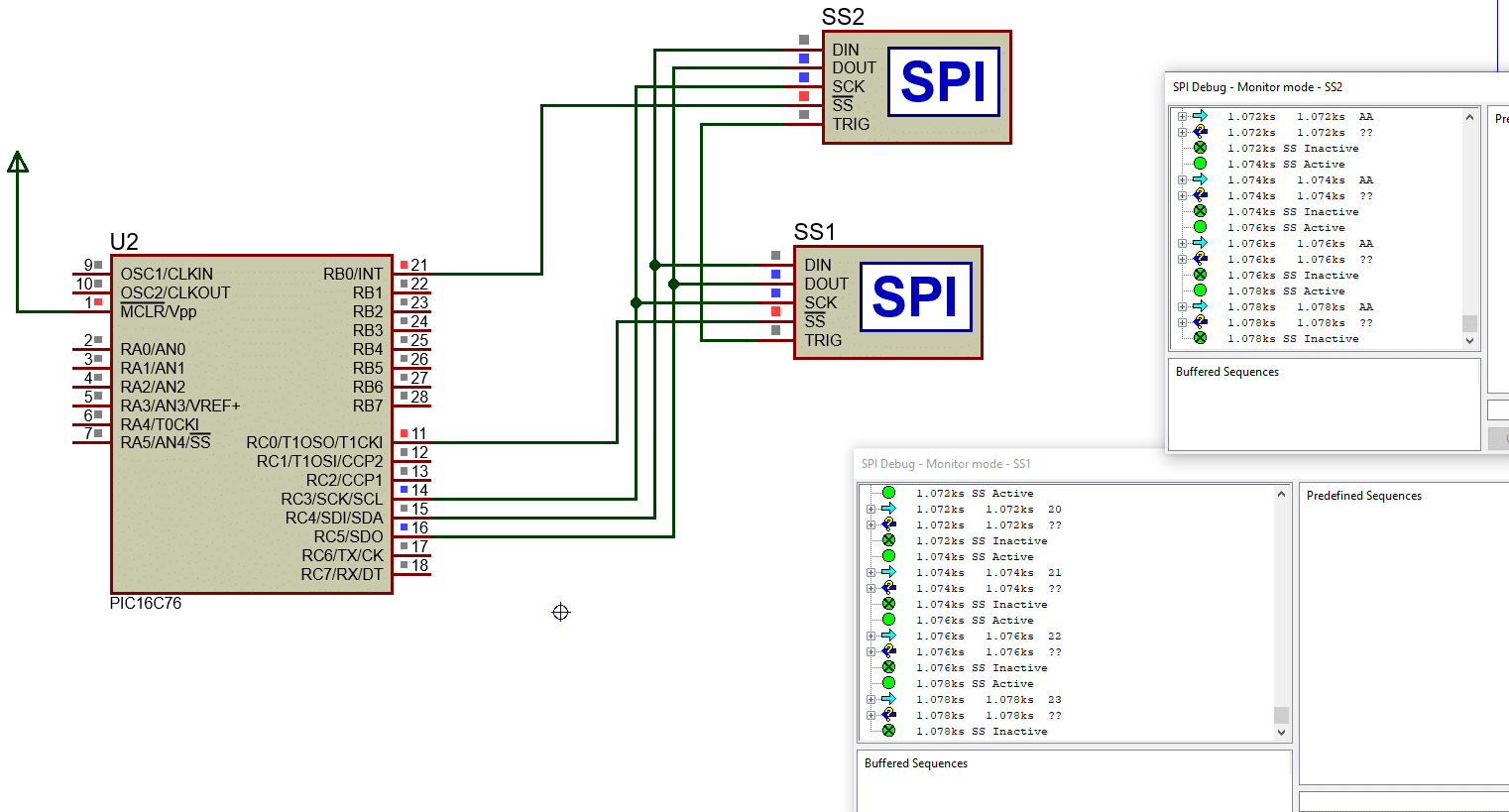

Here I’m interfacing two slave SPI devices with Master SPI. And the circuit diagram is:

Circuit diagram:

The code and the simulation result are explained in this video.

I²C Communication:

The Inter-Integrated Circuit (I²C) protocol is a synchronous, multi-master, multi-slave, packet-switched, single-ended, serial communication bus invented by Philips Semiconductor (now NXP Semiconductors). It’s widely used for attaching lower-speed peripheral ICs to processors and microcontrollers in short-distance, intra-board communication. Here’s an introduction to using I2C communication with a PIC microcontroller.

What is I²C?

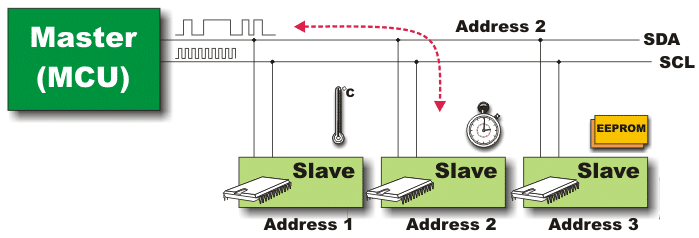

Before diving into the specifics of the PIC microcontroller, it’s important to understand the basics of I²C itself. I²C allows two or more devices to communicate with each other via a control bus and data bus. All the devices connected through I²C communicate through these two wires:

• SDA (Serial Data) – the line for the data transfer
• SCL (Serial Clock) – the line for the clock signal

Features of I²C in PIC Microcontrollers:

• Two-Wire Protocol: As mentioned, I²C communication requires only two wires, making it cost-effective for complex communication within a circuit.
• Addressing Scheme: Each device connected to the I²C bus is identified by a unique address—either 7-bit or 10-bit—which is used to match the address sent by the master.
• Speed Variants: The I²C protocol supports multiple speed grades, with the standard mode being 100 kbit/s.

Setting Up I²C on a PIC Microcontroller:

1. Initialization: Begin by configuring the I²C module of the PIC microcontroller. This setup includes setting the I²C mode (Master or Slave), the clock speed, and initiating the required registers.

void I2C_Init(const unsigned long feq_K) //function to initiliaze I2C
{
    //... PIC microcontroller registers setup code here
}

2. Start Condition: A high-to-low transition on the SDA line, while SCL is high, signifies that a communication start is requested by the master.

void I2C_Start(void) //function to start a I2C communication
{
    //... PIC microcontroller registers for initiating a start condition
}

3. Sending the Address: The master device sends out the address of the device it wants to communicate with, followed by an operation bit (read or write).

void I2C_Address(unsigned char address, char read_write) //function to send device address over I2C
{
    //... PIC microcontroller registers to send device address
}

4. Read/Write Operation: The master can now write data to or read data from the slave device.

void I2C_Write(unsigned char data) //function to write data over I2C
{
    //... PIC microcontroller registers to send one byte of data
}

unsigned char I2C_Read(char flag) //function to read data over I2C
{
    //... PIC microcontroller registers to read one byte of data
}

5. Stop Condition: When communication ends, the master generates the stop condition.

void I2C_Stop(void) //function to stop I2C communication
{
    //... PIC microcontroller registers to generate a stop condition
}

Troubleshooting and Considerations:

• Ensure pull-up resistors are connected to both the SDA and SCL lines as they are open-drain.
• Check for the correct address for the slave devices.
• Be aware of the bus capacitance limit, which may affect the number of devices you can connect.
• Clock synchronization is automatic, but ensure the slave devices can handle the chosen clock speed.

Summary:

I²C communication is a versatile option available in most PIC microcontrollers, facilitating communication with various peripherals and sensors. Understanding the basics of setting up and implementing I²C communication can greatly expand the capabilities of your projects.

Always check the specific datasheet and I²C module reference details of the PIC you’re working with, as register names and specific details may vary between different PIC families and models. To more about I²C, you can read this article too.

Read more on:

• Digital Clock using a PIC microcontroller & RTC DS1307
• Digital Clock with DS3231 & PIC microcontroller
• Digital Clock with PIC16F676 & Seven Segment Display

---

Practical example:

For basic I²C communication, let’s test with debugger.

Circuit for basic I2C:

mikroC code for I²C:

/*
  Project name "Understanding I2C communication"
  Program written by Mithun K. Das; +8801972448270(WhatsApp)
  MCU:PIC16F76; X-Tal: 8MHz; mikroC pro for PIC v7.6.0
  Date:23-02-24
*/

// Software I2C connections
sbit Soft_I2C_Scl           at RC3_bit;
sbit Soft_I2C_Sda           at RC4_bit;
sbit Soft_I2C_Scl_Direction at TRISC3_bit;
sbit Soft_I2C_Sda_Direction at TRISC4_bit;
// End Software I2C connections


void main()
{

  Soft_I2C_Init();           // Initialize Soft I2C communication

  while (1)
  {
      Soft_I2C_Start(); // issue I2C start signal
      Soft_I2C_Write(0x01);
      Soft_I2C_Write(0x02);
      Soft_I2C_Write(0x03);
      Soft_I2C_Write(0x04);

      Soft_I2C_Stop(); // issue I2C stop signal


      Delay_ms(2000);
  }
}

Explanation in a video:

Both the code of I2C and the circuit diagram are explained in this video.

I hope this will give you the basic knowledge about I²C communication and now you can carry on to explore more.

Conclusion:

Understanding SPI and I2C communication protocols opens doors to a myriad of possibilities in interfacing sensors, modules, and displays, and facilitating MCU-to-MCU communication. Mastery of these protocols is not just desirable but essential for any engineer. Remember, there’s no shortcut to expertise; practice is paramount. So, let’s embark on the journey of exploration and skill-building with SPI and I2C. See you soon for more exciting discoveries!
