PICKit2 is one of the most common programmers for PIC microcontrollers. PICKit2 and PICKit3 are available in the market. Besides, you can make your PIC programmer using the PICKit2 colon Simplified version. In this article, you will see how you can make your PICKit2. Also, there are our products, you can get help too.

⚠️ Disclaimer ⚠️

Working with electricity involves serious risk. Ensure you have the necessary skills and take proper safety precautions before attempting any electrical projects. Proceed at your own risk — the author assumes no responsibility for any damage, injury, or issues resulting from the use or misuse of the information provided.

Advertisements

All content on this website is original and protected by copyright. Please do not copy or reproduce content without permission. While most of the resources shared here are open-source and freely accessible for your learning and benefit, your respect for our intellectual effort is appreciated.

If you find our tutorials helpful, consider supporting us by purchasing related materials or sharing our work — it helps keep the content flowing.

Need help or have questions? Leave a comment below — the author is always happy to assist!

>> PICKit2 2.6 Software download link.

You may check this: PICKit2 PCB Design Download

About PICKit2:

PICKit2 is a programmer of firmware burner or you can call it hex burner too for PIC micro-controllers. It is an open-sourced programmer from Microchip Electronics. The PICkit 2 is an older version of the PICkit™ 3 and does not support newer devices. For new device support and additional features, please see the PICkit 3. But for a small range of products and learning steps, this is the best.

PICKit2 Circuit diagram:

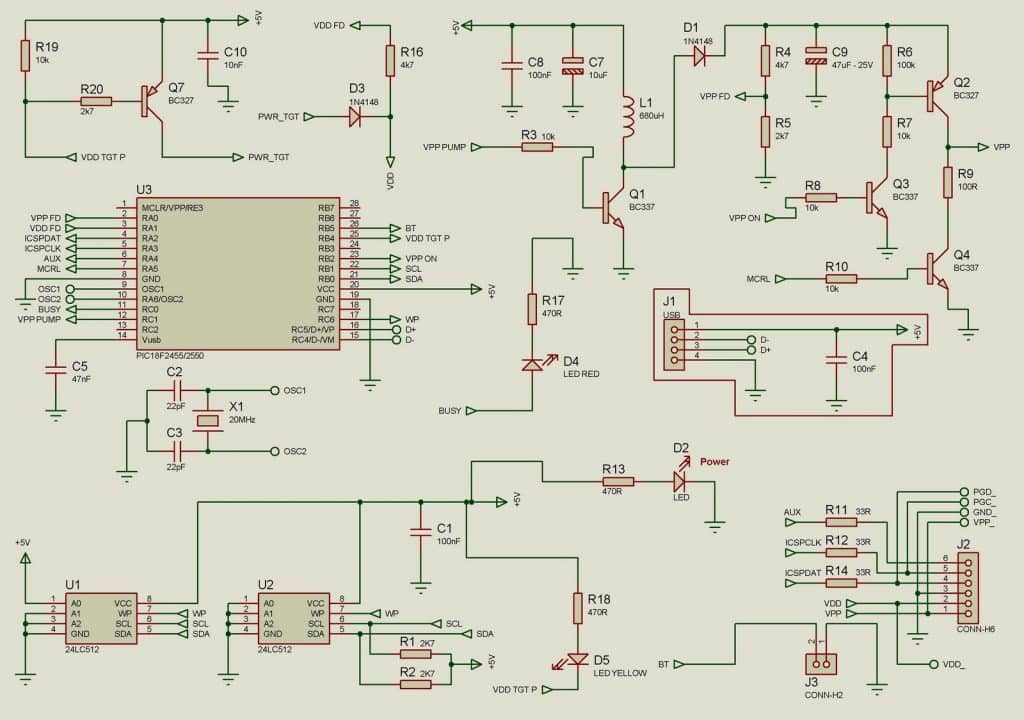

Here is the PICKit2 colon Simplified circuit diagram. Some components are changed with their equivalent ones.

PICKit2 Circuit diagram

This is the main circuit for PICKit2. But you can eliminate some parts to simplify this design. Here, U1 & U2 are used to store programs for the ‘Program to Go’ option. From a simple operation, this is not required. You can omit this. Again, the VDD TGT P section is not required all the time for normal 5V MCUs. You can eliminate that block too.

Simplified Circuit:

After simplification, the diagram is like this:

PICKit2 Circuit diagram

Once you made the circuit on a board, you need to install the PICKit2 software.

PICKit2 Software:

Or simply install the software first, then you can find the firmware from C://program files/microchip/pickit2. There will be a hex file like this:

PCB [Single Layer version] :

You can design your PCB if you wish. Besides, you can use ours too.

PICKit2 programmer

The PCB is designed in SprintLayout 6.0. You can use that or anything else. The output of this design is:

PICKit2

If you are interested then you can get the design files. But as to design such a product lots of effort is required. So you should pay a little for that.

Conclusion:

In this article, you learned about PICKit2. Besides, you can follow our designs or even you can buy the Gerber file from us. Now you can make your programmer I wish.

Thanks, and enjoy.
